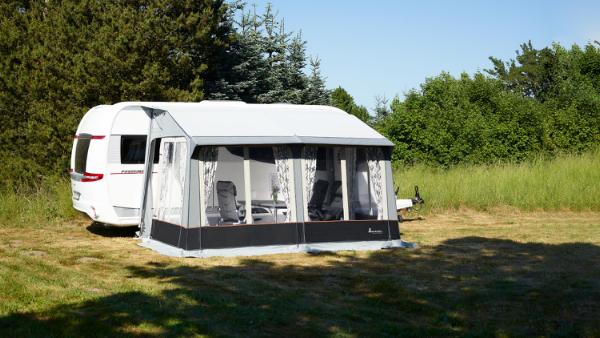

Universal 360 Dawn
Thanks to their great strength and stability, the Universal Dawn 360 porch can be put up in all weather conditions – all year round.
Details & Features
Number
Special Details
Ventilation in both sides and adjustable front ventilation. External mud flap, flexible pegging, special sloping roof which makes the awning suitable for year-round camping, extra heavy-duty window film. (frost proof)
Removable/foldable parts
Curtains
Collection
Recommended For
Comes as standard with
Materials
In doubt about which type of frame to choose? Look under Tips & Tricks in the top menu.
Frame options
Roof fabric
Base Material
Side/Tent Material
Colours
Measures
Front & side illustration
Red dots: No. of rafter poles.
Dotted outline: Zip for removable and fold-down panels.
Cross-hatched windows: Ventilation net with foil cover.
Base drawing
Dotted outline: Canopy.
Triangles: Door openings.
Dimension
360
Width (cm)
380
Depth (cm)
230
Fits caravan heights between (cm)
235 - 250
Straight rail measure (cm)
395
Wing measure (cm)
2 x 21
Tunnel length (cm)
353
Weight incl Zinox / Prenox (kg)
43,95
NetWeight
21.65
Assembly and Maintenance
Aufbauanleitung
Maintenance Advice
TIPS FOR MAINTENANCE
Vacuum or brush awning off when it is dry. Subsequently, wipe with a damp cloth.
Windows can occasionally be sprayed with Aquatex reproofer, and then immediately wiped with a dry cloth (max. twice a year).
For larger cleaning, IsaClean can be used. Aquatex should be used afterwards for reproofing.

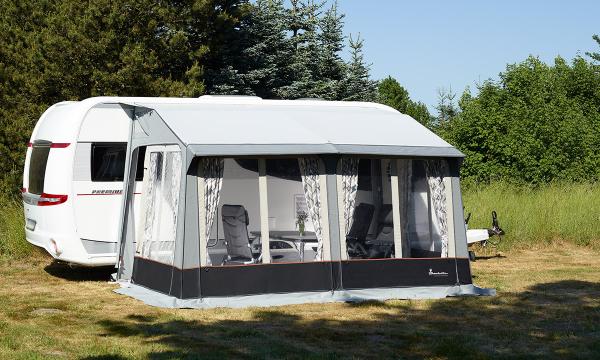

Universal Dawn 360 & 420
Thanks to their great strength and stability, the Universal 360 and 420 Dawn porches can be put up in all weather conditions – all year round. Two support poles press the sewn-in foam pads securely against the side of the caravan, while click profiles hold the sides directly on the support pole for a perfect seal.
